Dear AFNI experts,

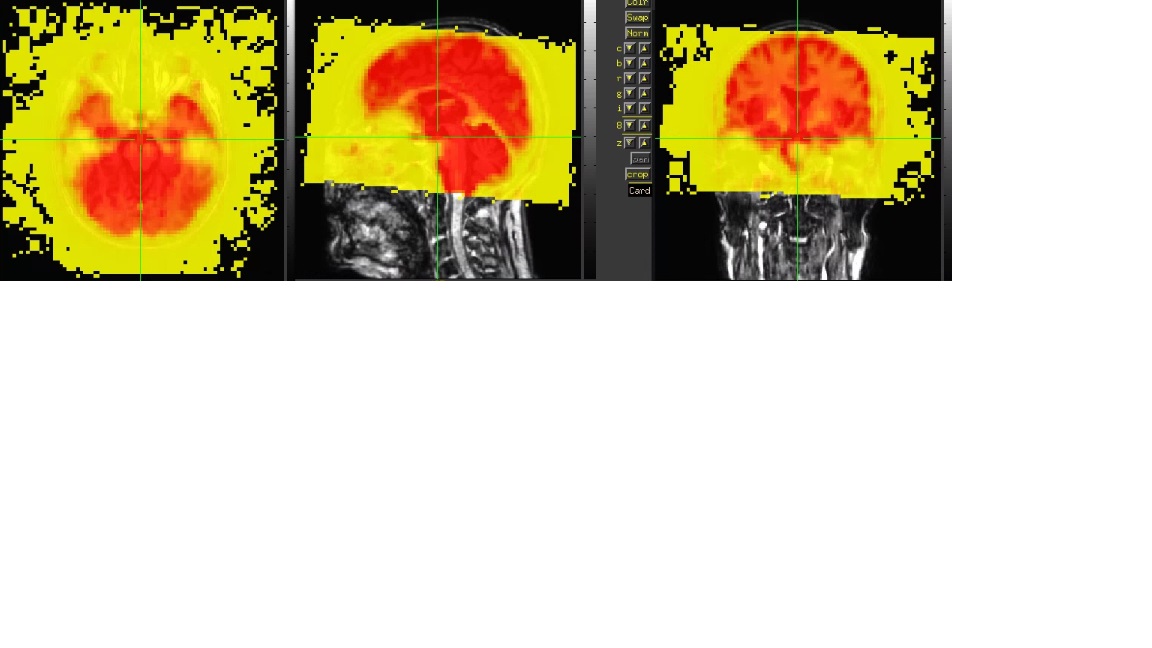

I just ran proc.py (example 11 with FreeSurfer) for the resting state fMRI data. I was then checking the data quality and found that nothing was shown when errts.fanaticor file was overlayed to anat.final file for this participant (the first image attached). I did align the epi and anat files using the align_epi_ant command (the second image attached), so I am not sure what is the issue here. I have never seen this before. Other subjects’ data were fine. Could you please advise what could be an issue here?

Best,
JW

1.jpg1152×648 54.5 KB

2.jpg1152×648 102 KB

2

Hi JW,

Try changing the overlay volume index. It seems likely that volume #0 was censored in the regression and so is all zero.

  • rick
3

Hi Rick,

That works. Thank you!

Best,
JW
